Products

Basic Over-all Vibration

SPM Instrument AB

www.spminstrument.com

1. BearingChecker BC200-250 --- Product

Simple low cost handheld instrument for Shock Pulse measurements of ball or roller bearings. Used as a trending tool.

Indicates the mechanical condition and the lubrication condition of bearings.

2. VibChecker VC200-250 --- Product

Measures the overall vibration velocity which can be compared to ISO 10816 Standards.
Includes both interal and external transducers.
It can also display a basic frequency spectrum to indicate the energy distribution.



Basic Over-all Vibration

CEMB SpA

www.cemb.com/vibration

CEMB Model N130 Vibrometer --- Product

Low cost handheld instrument with an external transducer for the measurements of displacement, velocity & acceleration and compares the value to ISO10816 Standards.

Records a basic FFT which can be downloaded to PC software for reporting. Also measures ball or roller bearing condition.

MicroMega-Dynamics

www.micromega-dynamics.com

Micro Mega -TINY --- Product

This is a three axis Vibration logger with 6-Hr. storage of vibration velocity which can be compared to ISO10816 Standards.

Uses a rechargeable internal battery and data is downloaded to software in a PC via a USB interface. Multiple units can be synchronised for structural modal analysis.

Vibration Analysis

SPM Instrument AB

www.spminstrument.com

1. Leonova Emerald --- Product

The Emerald is a single channel vibration Data Collector used to measure Shock Pulse & vibration values from rotating machinery. The stored data is down loaded to SPM Condmaster Ruby Software for trending, analysis and reporting.

2. Leonova Diamond --- Product

The Diamond is a three channel Data Collector for XYZ measurements of machine data. With accessories it will enable 2xPl Balancing & Laser shaft Alignment to be done with the one unit.

3. Condmaster Ruby Software --- Product

Condmaster Ruby Software for trending, analysis and reporting. It interfaces to both Portable and On-Line Systems.

Vibration Analysis

CEMB SpA

www.cemb.com/vibration

CEMB Model N330 Vibrometer --- Product

The N330 is a two channel vibration Analyser with internal storage for vibration measurements and condition assessment. Screen shots can be stored for any display.

Records a detailed FFT which can be downloaded to N-Expert PC software for reporting. Also measures ball or roller bearing condition.

Includes 1xPl & 2xPl balancing programs plus Grinding Wheel balancing using 2 or 3 correction weights.

MicroMega-Dynamics

www.micromega-dynamics.com

Micro Mega -FEEL --- Product

Using a USB cable connected accelerometer and an Android Smartphone with the Micro Mega App vibration data time waveform, and FFT displays can be stored for later analysis.

On-Line Condition Monitoring

SPM Instrument AB

www.spminstrument.com

1. Intellinova Parallel EN On-Line Monitor --- Product

The Intellinova Parallel EN can be a 4,8, 16, or 32 Channel Monitor used to measure Shock Pulse & vibration values from the Duotech Transducer mounted on rotating machinery. The stored data is down loaded to SPM Condmaster Ruby Software for trending, analysis and reporting.

2. MG4-2A Protection Monitor --- Product

This model is a 4 channel protection monitor for 2x shock pulse and 2x vibration overall values.

3. Airius Wireless Transducer On-Line --- Product

The Airius is battery powered & measures in X,Y, Z directions and via Wi-Fi modems will relay vibration & temperature information to the cloud or stand alone Condmaster Ruby Software

Correction Tools

CEMB SpA

www.cemb.com/vibration

1. CEMB Model N330 Balancer --- Product

The N330 is a two channel vibration Analyser with internal storage for vibration & balancing measurements. Screen shots can be stored for any display.

Includes 1xPl & 2xPl balancing programs plus Grinding Wheel balancing using 2 or 3 correction weights.

2. CEMB Model AL-30 Laser Shaft Aligner --- Product

This unit has a wireless interface to both laser heads which measure simultaneously to give live values on a colour screen for correction. Shows what is needed for soft foot and thermal growth offsets.

Correction Tools

CEMB SpA

www.cemb.com/vibration

1. CEMB Model AL-10 Laser PulleyAligner --- Product

This unit is a dual laser battery operated with magnetic bases and V-grooved mounting feet. Ensures parallel pulley alignment giving extended belt life, reduced vibration and reduced bearing loads.

2. CEMB Protection Monitor --- Product

The Model TM1 vibration protection monitor with 2x independent channels for velocity or accelerometer inputs. Output alarms for relays and PLC interface.

Correction Tools

Hilger u. Kern

www.hilger-kern.de

1. HUK Model Trummeter Belt Tension Unit --- Product

The small hand held battery operated measuring Trummeter measures the resonant frequency of the belts which can be matched to tension standards. It will ensure that a bank of belts all have the same tension thus reducing ware and vibration.

2. HUK Model Leak Detectors --- Product

Small hand held battery operated leakage detecting device for compressed air, ring mains and pneumatic systems.

3. HUK Model Leak Shooter --- Product

Digital Camera for compressed air leakage.

Workshop Dynamic Balancing

CEMB SpA - Italy

www.cemb.com/industrial

1. CEMB Horizontal Machines --- Product

CEMB is a world leader in the design and manufacture of a large range of horizontal balancing machines covering a capacity range from 5Kg to 60,000Kg. They are all Subcritical (“Hard Bearing”) machines giving a correction callout after the first rotor spin. Using an industrial PC and Windows operating platform enables many special programs such as multi-pedestal balancing.

2. CEMB Vertical Machines --- Product

Similarly the vertical machines are “Hard Bearing” design and cover a capacity range from 5Kg to 2,000Kg. Ideal for automatic production balancing.

Workshop Dynamic Balancing

IRD Balancing LLC - USA

www.irdbalancing.com

1. IRD Balancing Horizontal Machines --- Product

IRD Balancing LLC is a USA company specialising in manufacturing SuperCritical (“Soft Bearing”) workshop dynamic balancing machines. Their capacity range extends from 3Kgs to 200,000Kgs .

They are the only company that manufactures a true transportable balancing machine.

The motion measuring and calibration methods used ensures the highest degree of balance accuracy.

Their machines are very flexible as there is virtually no limitation on rotor diameter or rotor length.

Continuous Production Dynamic Balancing

Accretech SBS - USA

www.accretechSBS.com

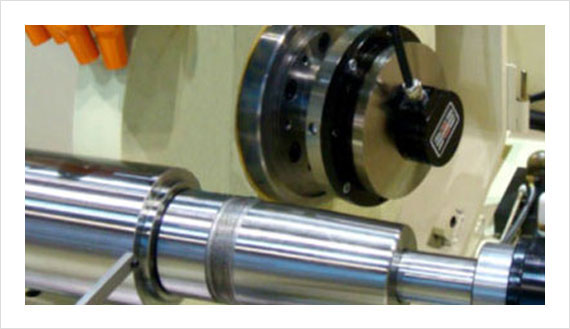

1. SBS Grinding Wheel Balancing --- Product

SBS is a USA Company who manufacture an automatic continuous dynamic balancing system for grinding wheels. There are significant cost savings and improved grinding quality with prolonged wheel life and machine overhauls.

2. SBS Portable Balancing System --- Product

The model SB-500 Balancer is a full featured balance and process Control Unit for high speed (300-30,000rpm) balancing to accuracies up to 0.02 µm(p-p).
Reduced unbalance on grinding wheels, spindles and milling cutters greatly improves product quality, tool life and reduces machine wear.

Electric Motor Repair

IRD Balancing LLC - USA

www.irdbalancing.com

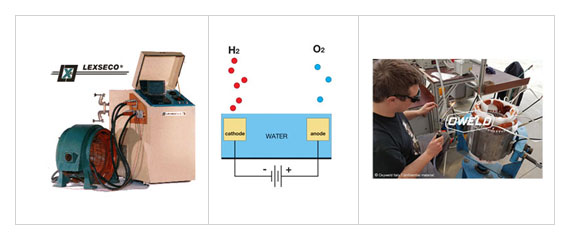

1. IRD Balancing –Lexseco Core Loss Tester --- Product

Lexseco specialise in motor core loss testing of stators and rotors prior to repair to ensure maximum motor efficiency. These Testers are used in motor rewind shops worldwide.

Oxyweld snc

www.oweld.com

1. Hydrogen/Oxygen Gas Generator from Water --- Product

OWELD offer a range of gas generators for the electrolysis of tap water to produce hydrogen and oxygen which are automatically mixed and ignited to give a very concentrated flame of localised heat with a flame temperature of 3,650º C,
No Gas Bottles/Low Pressures/No Fumes/No Optical Glare.

Supporting Services

MVS Aust P/L—Sydney

1. Instrument Repair service.
2. Calibration Service Traceable to NMI & Aust. Standards.
3. In house precision dynamic balancing of rotors up to 4 Kg capacity
4. On-site Commissioning Service & Installation Supervision.
5. On-site Customer Training in Vibration Techniques , Dynamic Balancing and Laser Alignment of shafts and Pulleys.
6. On-site Vibration Measurement & Analysis trouble shooting.
